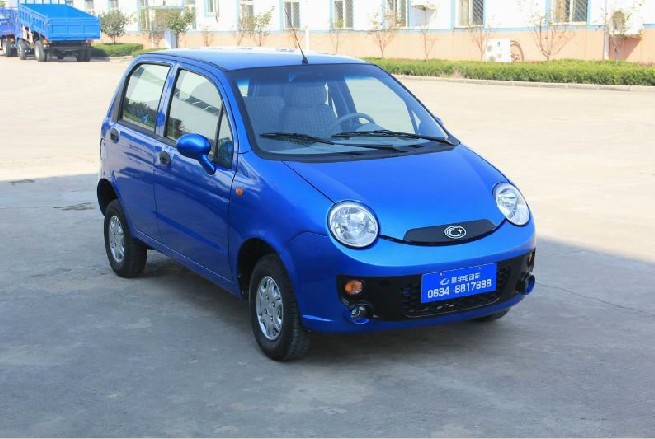

coche eléctrico EA-02


Specification & Tech Data
Basic Parameter EA-02
Body Steel body & Fiber glass bumper
Overall Dimension(L*W*H)mm 3380*1480*1550
Wheelbase（mm） 2170
Track f/r（mm） 1240/1230
Curb Weight（kg） 860kg ; 580kg without batteries
Min. Ground Clearance (mm) 120
Max Gradeability (%) 10
Drive Type Rear wheel driving
Braking System Drum for 4 wheel, oil brake
Gear Ratio of Rear Axle 6.28
Motor Power (kw) 4
Battery Voltage (v) 60
Charging Time (hour) 6-8 with 220v
Range (km) 120
Max Speed (km/h) 60
Min. Turning Diameter 5m
Braking Distance 5m max.
Parking Brake Hand / rear wheel brake
Speed Control Pedal control / automatic
Power Specification 　
Motor 4kw,Permanent magnet brush DC, air cooler
Electric System 6V DC
Charger 60V 25A
Controller 60V,350A
Battery 6V 180AH x 10pcs,Gel,free-maintenance
Weight of Battery 280KG
Life of Battery Recharging for 500 times,or 2 years
Convertor 60V DC 300W
Chasis System 　
Suspension System 4 wheel independent suspension
Steering System Rack and pinion steering gear
Wheel Type 145/70R12 69H
Wheel Hub 12"
